Dell UltraSharp 2407WFP 24" LCD
Monitor, 1920x1200, 6ms, DVI
With AJA HDP Converter
HD SDI and SDI (What
HDSDI and SDI Does) |
|
To optimize this monitor's
performance, your system must be able to support WUXGA
resolution (1920x1200).
The UltraSharp 2407WFP is Dell's next-generation 24"
wide-aspect LCD monitor. As the world's Number 1 supplier of
flat-panel displays, Dell continues its commitment to
provide latest LCD technology at industry-leading prices.
Performance: Fast response times can reduce ghosting and
smearing during video playback, while high contrast ratios
provide rich, powerful colors. Wide viewing angles allow for
clear views from any location.
Widescreen: With resolutions of up to 1920x1200 pixels, the
2407WFP is ideal for the multi-tasker or gamer. Watch movies
in original 16:10 format. Run multiple applications on a
single monitor.
Features: 4 USB 2.0 ports give users easy access points to
plug in external devices. An integrated 9-in-2 multimedia
card reader allows easy access to photos or files. With
3.94" (100 mm) of vertical adjustment and 24° of tilt, it
helps to reduce eye/neck strain. This Flat Panel LCD Monitor
comes with a 3-Year Warranty.
Specifications
Diagonal Size: 24"
Display Type: Flat Panel Display / Active Matrix TFT -
Desktop
Depth: 7.68"
Features: 100 mm VESA Mounting, Height Adjustable Stand
Included, Detachable Panel mechanism
Height: Compressed: 15.27", Extended: 23.02"
Weight: 18.3 lbs
Width: 22.04"
Image Max H-View Angle: ±89°
Image Max V-View Angle: ±89°
Color Support: 16.7 Million
Connectivity Technology: Cable
Device Type: Flat Panel LCD Monitor with Height Adjustable
Stand
Dimensions (WxDxH): 22.04" x 7.68" x 15.27" to 23.02"
Dimensions (WxDxH) / Weight: 22.04" x 7.68" x 15.27" to
23.02" / 18.3 lbs
Enclosure Color: Black
Image Aspect Ratio: 16:10
Image Brightness: 500 cd/m² (typical)
Image Contrast Ratio: 1000:1 (typical)
Max Resolution: 1920x1200 (WUXGA)
Max Sync Rate (V x H): 76 Hz x 81 kHz
Power Consumption Operational: 110 W (maximum)
Diagonal Size / Viewable Size: 24" / 24"
Port(s) Total (Free) / Connector Type: 15-pin D-sub / DVI-D
(HDCP) / S-video / Composite / Component / 4 x USB 2.0
Compatibility: PC/MAC
Product Highlights:
Maximum resolution of 1920x1200 pixels
HDCP compliant monitor
Faroudja DCDi Processing helps to eliminate jagged edges and
provide image enhancements
Integrated Adaptive Color and Contrast technology helps to
enhance contrast in luminance range
Features Active Color Management (ACM) designed to support
most viewing modes with optimum color saturation
Widescreen aspect (16:10) panel improves viewing experience
Supports more advanced features such as PIP (Picture in
Picture) and PBP (Picture By Picture)
4 USB 2.0 ports
9-in-2 Flash card reader
|
|
AJA’s HDP
HD-SDI/SDI to DVI-D and Audio
Converter. |
FEATURES
|
HDP
HD-SDI/SDI to DVI-D and
Audio Converter
The HDP is a miniature HD-SDI/SDI to DVI-D
converter for LCD or Plasma monitors. Using a
very high quality scaling engine, the HDP will
automatically size 4:3 or 16:9 inputs to many
DVI-D monitors (see Technical Note below). For
appropriate monitor configurations, scaling is
automatically 1 to 1 — for example, displaying
1920x1080 video on a WUXGA (1920x1200)
monitor. The HDP will also automatically adapt
the input frame rate for monitor
compatibility. In addition, the HDP provides 2
channel RCA style audio monitoring and 2
looping outputs of the SDI inputs. HDP is the
ideal solution for displaying SDI or HD-SDI on
any LCD or Plasma DVI-D monitor. |
Converts
HD-SDI/SDI to DVI-D for LCD/Plasma monitors
Automatically adapts to any LCD monitor up to
1920x1200
High quality scaling engine for proper display
of 4:3 or 16:9 content
Scaling is 1 to 1 for appropriate monitor
configurations
2 channel audio output
2 HD-SDI/SDI looping outputs
Flexible 5-18V power supply |
|
Technical Note
The HDP is designed to work with most DVI-D
monitors. The HDP uses the industry standard
EDID communication protocol (within the DVI
link) to communicate with the monitor, and
then adjusts the HDP's internal scaling engine
to scale the input video to the native
resolution of the monitor. However, due to the
hundreds of variations of DVI formats
currently in use, proper operation with all
monitors cannot be guaranteed. The HDP has 2
modes of operation that occur automatically,
depending on what monitor it is attached to.
These modes are Recommended Monitor Mode or
VESA Mode.
Recommended
Monitor Mode
For recommended monitors, there is custom
firmware that will provide an accurate
frame-locked image for all supported SDI and
HD-SDI input formats. The HDP automatically
determines the monitor it is connected to.
Recommended
Monitors:
- Apple 23" HD
Cinema, model M9178LL/A (aluminum bezel)
- Sony 23",
model SDM-P234
- Viewsonic
VP231WB (60Hz Vlock native, 50/60Hz Vlock @
720p)
- Dell 2405FPW
(50/60Hz Vlock native, 50/60Hz Vlock 720p)
- Barco LC-42
(supported on HDP serial numbers H05019 or
higher)
- Barco LC-47
(supported on HDP serial numbers H05019 or
higher)
VESA Mode
For DVI-D monitors not on the recommended
list, the HDP will use standard VESA timing
based on the particular monitor's "preferred
timing" - as determined by the EDID
communication with the monitor. Because VESA
timing standards are not based on video
formats, the HDP cannot frame lock to the
input video and will operate like a frame
synchronizer — it will frame rate convert by
adding or dropping frames as needed. If a
particular monitor reports a preferred timing
mode that is not supported by the HDP, the HDP
will default to standard XGA (1024 x 768 60Hz)
timing.
Monitors Tested
for Compatibility in VESA Mode:
- HP HPL2335
Samsung 170T
- Samsung 213T
Samsung 243T
- Samsung 173P
The HDP is designed for use as a general
monitoring device, perfect for use in
applications such as:
- General
post-production reference monitoring
- Client
monitoring
- Presentation
- Projection
- Corporate
displays
- Kiosk
applications
- ...And much,
much more!
The scaling
engine in the HDP makes it a simple and
effective way to get full-screen images from a
myriad of SD and HD sources. The HDP is not
intended as a critical viewing device, for
applications such as color-correction, etc. We
recommend professional/broadcast grade
monitors for such critical applications.
Specifications
Inputs
|
SMPTE-259/292/296 SDI/HD-SDI |
Input Formats
|
1080i, 1080p,
720p, 525i, 625i |
Outputs
DVI-D (E-DDC
and E-EDID compatible)
Audio (2 channel RCA-style outputs) @
-10dBV nominal
2 Looping SDI outputs of the SDI inputs |
Supported
Output Displays (native resolution)
Note: for resolutions not listed here, the HDP
defaults to 1024 x 768
800 x 600 —
SVGA
848 x 480 — Plasma
852 x 480 — Plasma
1024 x 600 — WSVGA
1024 x 768 — XGA
1280 x 720 — HDTV (720p)
1280 x 768 — WXGA
1280 x 960 — 4:3 SXGA
1280 x 1024 — SXGA
1360 x 768 — Plasma
1366 x 768 — Plasma
1400 x 1050 — Projector
1600 x 1024 — WSXGA
1600 x 1200 — UXGA
1680 x 1050 — Apple 20” Cinema HD
1920 x 1080 — HDTV (1080p)
1920 x 1200 — WUXGA |
Maximum DVI
Resolution
Power
Size
|
5.8" x 2.4" x
1" (131 x 61 x 25mm) |

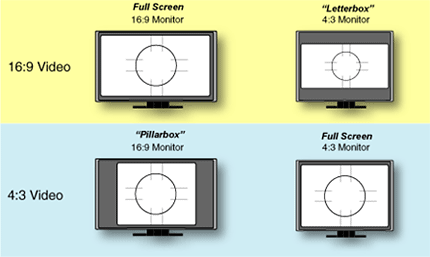

HDP Hardware
Scaling
What HDSDI
and SDI Does
The Serial Digital Interface (SDI),
standardized in ITU-R BT.656 and SMPTE 259M,
is a digital video interface used for
broadcast-grade video. A related standard,
known as High Definition Serial Digital
Interface (HD-SDI), is standardized in SMPTE
292M; this provides a nominal data rate of
1.485 Gbit/s. An emerging interface, commonly
known in the industry as dual link and
consisting essentially of a pair of SMPTE 292M
links, is standardized in SMPTE 372M; this
provides a nominal 2.970 Gbit/s interface used
in applications (such as digital cinema) that
require greater fidelity and resolution than
standard HDTV can provide. A more recent
interface, consisting of a single 2.97 Gbit/s
serial link, is standardized in SMPTE 424M.
These standards are used for transmission of
uncompressed, unencrypted digital video
signals (optionally including embedded audio)
within television facilities; they can also be
used for packetized data. They are designed
for operation over short distances; due to
their high bitrates they are inappropriate for
long-distance transmission. SDI and HD-SDI are
currently only available in professional video
equipment; various licensing agreements,
restricting the use of unencrypted digital
interfaces to professional equipment, prohibit
their use in consumer equipment.
|
|
|
|
|
Find all your video cables, adapters, switches, extenders, and more for home or professional needs at Sewell Direct. Same day shipping.
 |
|
Rent Vista 100" LCD Large
Screen Display |
|
Rent Broadcast LCD Video Monitors
Sony LMD-230 HD SDI |
|
LCD displays
and monitors for Rent:
(4:3
aspect ratio)
NEC 17 inch, NEC 18 inch,
NEC 20 inch and
DELL 20 inch
(Video/Data), HDTV
Data/Video 20 inch, (16:9 aspect ratio)
23 inch
wide
format (16x9),
26 inch wide format (16x9),
HDTV 30 inch wide format (16x9),
and NEC
30 inch wide format (16x9)
Maximize Your Monitors
Performance
with These Utilities
There's a reason your blues aren't always true. Same goes
for your reds, greens and every color in-between. What
you're seeing onscreen isn't necessarily accurate, it
all depends on your monitor.
huey is an easy-to-use monitor color correction tool
that automatically adjusts the color of your monitor so what
you're seeing is spot on. huey can even make further
adjustments to your monitor to compensate for changes in the
room lighting. Designed for calibrating and profiling
all types of monitors – LCD and CRT.
Rent for
Live Events, Media Environments, Stage Sets, Exhibits or
Themed Environments, Meetings, Corporate Theater,
Promotions, Parties, Awards & Entertainment Events, Public
Relations & Industry Press Events, Road Shows, Traveling or
Permanent Shows, Museums, Film & Television, Sponsorship
Presentation, Special Environments for all occasions
We are a full service audio, visual, video, lighting,
staging, and computer rental company. Serving clients
nationally, we offer one of the most comprehensive
inventories in the industry for small businesses events,
conventions, tradeshows, expositions, event planners,
training seminars, and live entertainment shows. With the
latest in technology from leading manufacturers, we ensure
your event will be a total success.
Rent
Tradeshow
AV
Equipment |
|
 |
NEC 30 Inch LCD Display
| Model Name |
NEC 3000 |
| Display Type |
30" IPS TFT |
 |
| Pixel Pitch |
0,50 mm * 0,50
mm |
| Viewing Angle |
170°
horizontal / 170° vertical |
| Screen Aspect
Ratio |
15:9 |
| Active Screen
Area |
643 * 386 (w *
h) |
| Brightness |
450 cd/m² |
| Contrast Ratio |
350:1 Typ. |
| Display colour
depth |
16.77M colours |
| Horizontal
Frequency |
|
| Vertical
Frequency |
58 - 62 Hz |
| Response Time |
25 ms |
|
|
| Available
Resolutions |
-
1600 * 1200 (U-XGA),
Compressed
-
1280 * 1024 (S-XGA),
Compressed
-
1280 * 768 (W-XGA),
Optimal
-
800 * 600 (S-VGA)
-
640 * 480 (VGA)
|
| Signal Inputs |
-
Digital: DVI-I connector
-
Analog: D-sub
-
Analog: 5 * BNC
-
Composite: RCA/BNC
-
S-Video: Yes
|
| Special
Features |
|
|
|
| Plug & Play |
VESA DDC1 |
| Power
consumption |
-
On: 170 Watts (Max)
-
Standby: < 8 Watts
-
Off: < 0 Watts
|
| Power input AC
Adapter |
|
| OSD Controls |
Yes |
| USB Hub |
No |
| VESA Mounting |
No |
| Safety |
CE, TÜV GS,
FCC Class B |
| Dimensions (W x
H x D) |
|
| Weight |
17,5 Kg |
|
|
|
|
|
|
 |
|
Model No |
LM3010 30 inch display |
|
Wide Screen |
16:9 |
|
Resolution |
XGA 1024 x 768 Pixels |
|
Display Colors |
16.7 Millions Colors |
|
Close Caption |
Yes |
|
Pixel Pitch |
0.51mm x 0.51mm |
|
Active Viewing Area |
H-Position 170 degrees V-Position 170 degrees |
|
Multi-digital |
Input terminal provides host of video and audio choices
|
|
Brightness |
500 cd/m2 |
|
Contrast Ratio |
500:1 |
|
Video-on Video |
VOV can display multiple video sources at one time.
|
|
Intelligent screen image setting. |
Intelligent window control surface to simplify function
settings. |
|
Lamp Life |
50,000 hours |
|
Cable TV Tuner |
Yes |
|
Number of Channels |
Full Channel |
|
Pixel Number |
2949,120 pixel RGB |
|
On-Screen Display |
Yes |
|
TV Function |
TV CCIR Standard System-NTSC-M
TV Auto-Install Channel
Stereo Audio
TV Remote Control
Auto Install in advance Auto Scanning
CATV full frequency channel, AIR2-69CH
HDTV-1080i
PIP
Component (YCbCr/YPbPr) |
|
6-in-1 Card Reader |
SM, MS, SD, MMC, CF, MD |
|
Audio Amplifier |
5W X 2 |
|
TV System |
RF NTSC Only |
|
Input Terminal AV Input |
Terminal Input AV, S-Video, 15Pin D-Sub, DVI-D Component (YCbCr/YPbPr) |
|
Enclosure |
Remote Control, Battery, AC Power Cord, User's Manual |
|
Wall-Mount Type |
VESA 100 |
|
|
|
|
|
|
|
 |
|
Model No |
LM2610
26 inch display |
|
Wide Screen |
16:9 |
|
Resolution |
XGA 1024 x 768 Pixels |
|
Display Colors |
16.7 Millions Colors |
|
Close Caption |
Yes |
|
Pixel Pitch |
0.51mm x 0.51mm |
|
Active Viewing Area |
H-Position 170 degrees V-Position 170 degrees |
|
Multi-digital |
Input terminal provides host of video and audio choices
|
|
Brightness |
500 cd/m2 |
|
Contrast Ratio |
500:1 |
|
Video-on Video |
VOV can display multiple video sources at one time.
|
|
Intelligent screen image setting. |
Intelligent window control surface to simplify function
settings. |
|
Lamp Life |
50,000 hours |
|
Cable TV Tuner |
Yes |
|
Number of Channels |
Full Channel |
|
Pixel Number |
2949,120 pixel RGB |
|
On-Screen Display |
Yes |
|
TV Function |
TV CCIR Standard System-NTSC-M
TV Auto-Install Channel
Stereo Audio
TV Remote Control
Auto Install in advance Auto Scanning
CATV full frequency channel, AIR2-69CH
HDTV-1080i
PIP
Component (YCbCr/YPbPr) |
|
6-in-1 Card Reader |
SM, MS, SD, MMC, CF, MD |
|
Audio Amplifier |
5W X 2 |
|
TV System |
RF NTSC Only |
|
Input Terminal AV Input |
Terminal Input AV, S-Video, 15Pin D-Sub, DVI-D Component (YCbCr/YPbPr) |
|
Enclosure |
Remote Control, Battery, AC Power Cord, User's Manual |
|
Wall-Mount Type |
VESA 100 |
|
|
|
|
|
|
 |
| MultiSync LCD2335WXM 23" LCD
Monitor w/ TV Tuner |
| Manufacturer: |
NEC |
Interface Type:
 |
Audio - Line Out,
Audio - RCA,
Component Video,
Video - 15 pin High-Density D-shell (VGA),
Video - 24 pin DVI-D,
Video - 4 pin mini-DIN (S-Video),
Video - RCA Composite Video |
|
Aspect Ratio:
|
15:9 (Widescreen) |
|
Resolution:
|
1280 x 768 |
|
System Type:
|
Apple Macintosh,
PC |
|
Response Time:
|
25 ms |
|
Contrast Ratio:
|
500:1 |
| Viewable Size:
|
23 |
| Diagonal Size:
|
23 in |
|
Viewable Size:
|
23 in |
|
Aspect Ratio:
|
15:9 (Widescreen) |
|
Resolution:
|
1280 x 768 |
|
Response Time:
|
25 ms |
| Refresh Rate at Max
Resolution: |
60 Hz |
|
Contrast Ratio:
|
500:1 |
| Brightness:
|
500 cd/m2 |
|
Pitch:
|
0.39 mm |
| Horizontal Viewing
Angle: |
170 degrees |
| Vertical Viewing
Angle: |
170 degrees |
|
Interface Type:
|
Audio - Line Out,
Audio - RCA,
Component Video,
Video - 15 pin High-Density
D-shell (VGA),
Video - 24 pin DVI-D,
Video - 4 pin mini-DIN (S-Video),
Video - RCA Composite Video |
| Interface:
|
Analog,
Digital |
| Monitor Color:
|
Silver |
| Mounting:
|
Desktop,
Wallmount |
| General Features:
|
Multi-Language Menu,
Progressive Scan |
| Included Devices:
|
Built-in TV Tuner,
Monitor Stand,
Picture in Picture,
Power Supply,
Remote Control,
Speakers |
|
System Type:
|
Apple Macintosh,
PC |
| Height: |
18.8 in |
| Width: |
22.8 in |
| Depth: |
8.3 in |
| Weight: |
22 lbs |
|
|
 |
|
FEATURES - 23W36 Lcd monitor
23" HDTV Monitor
Truly flat LCD screen delivers razor sharp images
Built-In NTSC Tuner
Accepts cable/antenna, HDTV, satellite dish and NTSC video
sources
1280 x 768 WXGA Resolution
High resolution format produces extremely detailed imagery
400:1 High Contrast Ratio
LCD technology emits sharp contrast between light and dark
images
450 cd/m2 High Brightness
Renders an incredibly bright picture, even in light-drenched
environments
176º Viewing Angle
New Super IPS Technology allows for distortion-free viewing
from almost any angle
Hi-Res Component, S-Video, RF, A/V Inputs
Multiple inputs for DVD players, VCRs, computers and video
game systems
Unique Stand
Allows for easy cable management, with tilt and swivel
features for ease of viewing from any position |
SPECIFICATIONS -
ZENITH L23w36 Flat Panel Monitor
|
Screen
Size |
23" |
|
Resolution Display |
1280 x 768 (WXGA) |
|
Color
Depth |
16M (8-Bit) |
|
Aspect
Ratio |
16:9 |
|
Contrast
Ratio |
400:1 |
|
Brightness |
450cd/m2 |
|
Viewing
Angle |
176º |
|
3 Line
Digital Comb Filter |
Yes |
|
Tuning
System |
NTSC/NTSC-M |
|
Normal,
Wide, Zoom Display Modes |
Yes |
|
Digital
Progressive Scan |
Yes |
|
Dolby
Virtual Sound |
Yes |
|
On Screen
Equalizer |
Yes |
|
Gradual
Volume Increase |
Yes |
|
Total
Audio (Watts) |
14W (7W x 2) |
|
Twin/Advanced Picture-in-Picture (PIP) |
Yes |
|
Advanced Zoom |
Yes |
|
Tri-lingual Menus |
English, Spanish, French |
|
Parental
Control with V-Chip |
Yes |
Inputs
|
Normal
Hi-Res Component Video 1
S-Video In 1
RGB In 1
A/V In 2
RFs 1
Headphone 1 |
|
Cabinet
Dimensions |
Width x
Height x Depth (without stand) 23.6" x 17.5" x 3.3" |
|
Weight |
22.5 lbs. |
|
Finish |
Silver-Gray |
|
|
|
|
|
|
|
|
 |
20 inch data/video
The 2001FP's design combines style and functionality. Sitting on a
stable, silver, semicircular base, its slim, black bezel adds only
three-quarters of an inch to the top and the sides of the display
and one inch along the bottom. The 2001FP is highly adjustable,
too: it swivels smoothly 45 degrees to each side, tilts 20 degrees
backward and 5 degrees forward, and the telescoping neck adds
about five inches of height. The push of a button releases the
panel from the neck, which makes the 2001FP easy to store,
transport, or connect to a VESA wall- or arm-mount. And as we've
come to expect from larger LCDs, the 2001FP pivots from Landscape
to Portrait mode, making legal-size documents and Web pages easier
to view. Unfortunately, you'll have to download pivot software
from Dell's Web site; we wish it had come bundled with the
display. The onscreen menus are fairly easy to control using three
small adjustment buttons on the lower right of the bezel; a fourth
button selects the signal input.
A true multimedia display, the 2001FP has loads of connections.
It's compatible with PCs and Macs and accepts both analog and
digital video signals (unfortunately, you can't adjust the
contrast and some other image settings when connected via the
digital video interface). Tube watchers can take advantage of the
2001FP's picture-in-picture capabilities by connecting additional
video sources, say, a camcorder, via its composite and S-Video
inputs. The display also sports four downstream USB 2.0 ports--two
on one side and two in back--useful for connecting a joystick, a
keyboard, or any other USB-driven peripheral. A pliable silver
loop on the back is big enough to corral a handful of cables.
The 2001FP generally scored well in CNET's image-quality tests.
Text looked sharp in documents and spreadsheets and on Web pages.
However, we found some bumps and spots in blocks of colors, and
there were minor flaws in some of our grayscale tests. In our
informal video-motion tests, the 2001FP didn't perform noticeably
better than the other LCDs we've tested, despite its 16ms
pixel-response time; although the streaking and ghosting was not
egregious, there was detectable noise and some degradation of fine
detail. Still, such flaws are present on all LCDs to some degree,
and the 2001FP's image quality should satisfy most users.
SPECIFICATIONS:
Display type Flat panel display: TFT active matrix
Display (projector) diagonal size 20.1 in
Viewable screen size 20.1 in
Compatibility PC
Width 17.6 in
Depth 9.7 in
Height 18 in
Weight 18.7 lbs
Max resolution 1600 x 1200
Dot pitch 0.255 mm
Image brightness 250
Display (projector) image contrast ratio 400:1
Max vertical view angle +88 / -88
Max horizontal view angle +88 / -88
Max sync rate (V x H) 76 Hz x 80 KHz
Video Input
Input device type None
Digital video standard Digital Visual Interface (DVI)
Analog video signal RGB, S-Video, Composite video
Power
Power consumption operational 90 Watt
Operational power consumption (standby) 3 Watt
Connectivity
Built-in devices USB hub
|
|
|
|
|
|
|
|
 |
|
Model No |
LM2010 |
|
Diagonal |
20.1" |
|
Resolution |
800 x 600 Pixels |
|
Display Colors |
16.7 Millions Colors |
|
Remote Control |
Yes |
|
Pixel Pitch |
0.51mm x 0.51mm |
|
Active Viewing Area |
408mm x306mm |
|
Aspect Ratio Ratio |
4:3 |
|
Brightness |
500 cd/m2 |
|
Contrast Ratio |
500:1 |
|
Response Time |
4/12 ms (tr/tf) |
|
Viewing Angle To/Down |
170° |
|
Right/Left |
170° |
|
Lamp Life |
50,000 hours |
|
Cable TV Tuner |
Yes |
|
Number of Channels |
Full Channel |
|
Video System |
NTSC or PAL |
|
On-Screen Display |
Yes |
|
Speaker System |
2
Speaker Stereo Audio & Earphone Connector |
|
PIP |
Yes |
|
PC
Input |
15-pin mini D-Sub |
|
AV
Input |
Terminal Input AV
S-Video, 15Pin D-Sub |
|
V-chip |
Yes |
|
|
|
|
|
|
 |
NEC,
MULTISYNC LCD2080UX+ BLACK LCD 20"
Revolutionize your visual experience with the ground-breaking 20”
NEC MultiSync LCD2080UX+, a flat-panel monitor that boasts a
multitude of leading-edge capabilities. This model’s
ultra-thin-frame design, along with its advanced functionality and
productivity-enhancing technologies, could easily make it the most
intelligent visual display solution to date.
|
Specifications |
| Dimensions: |
Net (with stand):
17.4"(W) x 14.4-19.5"(H) x 7.9"(D)
442mm(W) x 366.3-496.3mm(H) x 200mm(D)
Net (without stand):
17.4"(W) x 13.4"(H) x 3.5"(D)
442mm(W) x 340mm(H) x 88.8mm(D)
Shipping:
22.6"(W) x 20.0"(H) x 11.8"(D)
574mm(W) x 507mm(H) x 300mm(D) |
| Input: |
Ambix+ Technology (DVI-I, DVI-D,
VGA 15pin) |
| LCD Module: |
20.1-inch (20.1"
viewable image size), active
matrix, thin film transistor (TFT), liquid
crystal display (LCD), 0.255 mm pixel pitch,
XtraView+ technology, RGB vertical stripe color
filter arrangement, 250 cd/m2 white luminance
typical, 400:1 contrast ratio - typical,
16ms response time - typical |
| Limited Warranty: |
3-Year Parts and Labor,
including backlight |
| Operating Altitude: |
0 to 15,912 Feet |
| Operating Humidity Range: |
30% to 80% |
| Operating Temperature: |
+41° F to +95° F / +5° C to +35° C |
| Power Consumption: |
ON: 54W
Power Savings Mode: <1W |
| Power Management: |
VESA DPMS |
| Resolutions
Supported: |
1600 x 1200 @ 60
Hz
Resolutions Supported (Analog):
720 x 400* @ 70 Hz to 85 Hz
640 x 480 @ 60 Hz to 85 Hz
800 x 600* @ 56 Hz to 85 Hz
832 x 624* @ 75 Hz
1024 x 768 @ 60 Hz to 85 Hz
1280 x 1024 @ 60 Hz to 85 Hz
1600 x 1200 @ 60 Hz
Resolutions Supported (Digital):
640 x 400* @ 70 Hz to 85 Hz
720 x 400* @ 70 Hz to 85 Hz
640 x 480 @ 60 Hz to 85 Hz
800 x 600* @ 56 Hz to 85 Hz
832 x 624* @ 75 Hz
1024 x 768 @ 60 Hz to 85 Hz
1280 x 1024 @ 60 Hz to 85 Hz
1600 x 1200 @ 60 Hz
NOTE: Some systems may not support
all modes listed.
|
| Storage Altitude: |
0 to 40,000 Feet |
| Storage Humidity Range: |
10% to 85% |
| Storage Temperature: |
+14° F to +140° F / -10° C to
+60° C |
| Sync: |
Separate sync: TTL level
(Positive/Negative)
Composite sync: TTL level (Positive/Negative)
Sync on Green: Video 0.3 Vp-p Negative (0.7Vp-p postive) |
| Synchronization Range
(Automatically): |
Horizontal: 31.5 kHz to 91.1
kHz
Vertical: 50.0 Hz to 85.0 Hz |
| VESA Hole Configuration
Spec. |
100 x 100mm |
| Voltage Rating: |
Universal 100
(110-240V) 50-60Hz Internal |
| Weight: |
Net (with stand): 23.1 lbs. / 10.5 kg
Net (without stand): 15.4 lbs. / 7 kg |
| Features: |
Ultra-thin frame (bezel),
XtraView+ Technology wide-angle viewing, Ambix+ Technology,
Advanced No Touch Auto Adjust, AutiBright, CableComp,
power-off timer, black level adjustment, digital smoothing,
digital controls, sRBG, OmniColor 6 axis control, third party
touchscreen and protective glass integration, Plug and Play (VESA
DDC2B&2Bi), VESA DPMS power management, Optional MultiSync
soundbar80, automatic DVI selection, ISO 13406-2 |
|
|
|
|
|
 |
Enjoy
the latest in LCD technology without breaking your budget with the
17" NEC AccuSync LCD72VX, a value-driven flat-panel monitor
equipped to enhance your desktop and visual experience. This model
features Ambix® digital/analog connectivity, touch-integration
capabilities, NaViSet™ interactive display settings control, low
power consumption and exceptional screen performance with
remarkable contrast ratio and brightness quality. Rapid Response™
technology delivers virtually uninterrupted, undistorted viewing
of high-speed, full-motion video, adding excitement to
applications such as multimedia presentations, DVD movies and
video games. The choice of a white or black cabinet allows you to
match your system, laptop or work environment.
| Platform: |
PC |
| Display Type: |
Active Matrix LCD (TFT) |
| Viewable Size: |
17.0 in |
| Display Resolution: |
1280 x 1024 |
| Response Time: |
12 ms |
| Horizontal Viewing Angle (Degrees): |
160 |
| Vertical Viewing Angle (Degrees): |
145 |
| Port Connectors: |
- 1 x VGA 15-pin D-sub
- 1 x DVI-D
|
| Brightness: |
250 cd/M2 |
| Contrast Ratio: |
450 :1 |
| Video Interface Type: |
Analog
Digital |
| Included Software: |
|
| Height: |
15.3 in |
| Width: |
14.8 in |
| Depth: |
7.1 in |
| Weight: |
10.1 lbs |
|
|
|
|
|
|
|
|
|
What is an
LCD Display
An LCD TV is a thin panel TV capable of hanging on the wall or
sitting on a stand. It is comparable to Plasma only in the fact
that it is a flat TV technology...More
information |
Maximize Your Monitor with These
Utilities |
|
|
|
 |
 |
 |
 |
|
Privacy
|
Copyright
© 2000
Dewit All Rights Reserved |
FastCounter by bCentral
|
Home |
|
|
